Equipment

The floor.

Two combined shops in Richmond, BC: precision machining on one side, steel fabrication and welding on the other, with laser and routing in between, and a 6 kW fiber tube laser arriving.

Machine by machine

What each one does for you.

Owning both machining and fabrication means faster iterations, tighter tolerances and no waiting on outside vendors. Here is what runs on the floor and what to send to each.

How it works

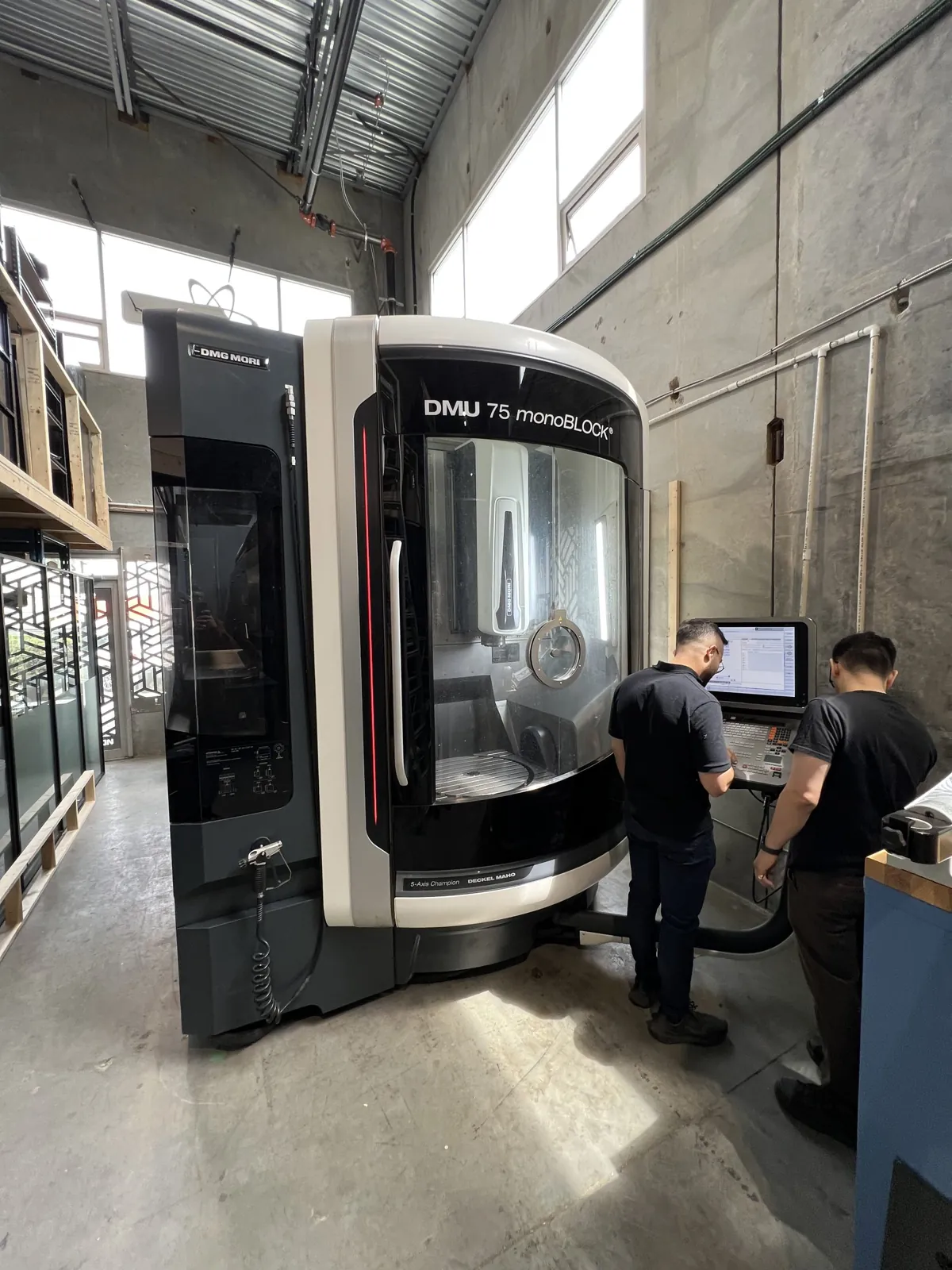

DMG MORI DMU 75 monoBLOCK 5-axis CNC machining centre at Spark Fabrication in Richmond, BC
In our shop
01 · 5-axis machining centre

DMG MORI DMU 75.

Complex parts in one clamping: the table tilts and turns so the tool reaches five sides without re-fixturing.

Typical jobs
  • Housings
  • Manifolds
  • Fixtures + jigs
  • Impellers
  • Weldment rework
See what it can do Quote a 5-axis part
Our DMU 75 cutting · Richmond, BC
Axes
5 simultaneous
Travel
840 × 500 mm
Tolerance
±0.005″
Extra
Mill-turn
Aluminum part held in a 5-axis vise on the DMU 75 table
Machined part clamped in a vise on the machining centre
CNC machined aluminum manifold blocks with bored ports
Pocketed aluminum frame, machining work by Spark Fabrication in Richmond, BC
LOAD AREACUTTING CABINOUT TABLE ROUND Ø12–240 MM 0123456789 9 M LOAD AREA · 29.5 FT X 0000.0 A 000° 6.0 kW Arriving soon

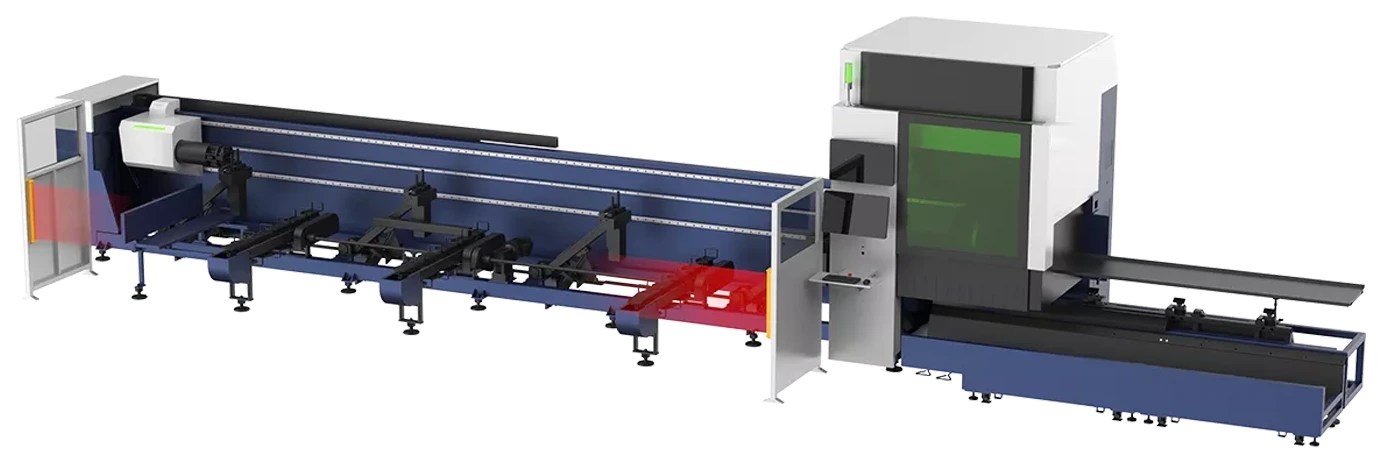

6 kW fiber tube laser with a 9 m load area, loading rack, cutting cabin and out table
The real machine · 9 m load area, cutting cabin, out table
02 · Arriving soon · rare in Western Canada

6 kW fiber tube laser.

Tube, pipe and profile up to 9 m long, cut with every hole, slot, cope and notch already in it. Frames, railings, racks and machine bases go straight from the laser to the weld table, with no layout and no drilling.

Get an estimate Submit a tube projectSizes, shapes + ideas
Source
6 kW fiber
Load area
9 m · 29.5 ft
Tube size
12 to 240 mm
Profiles
Tube · angle · channel · beam
Motion
150 m/min · 1.5 G
Heaviest tube
300 kg
Cutting · tube, pipe + angle

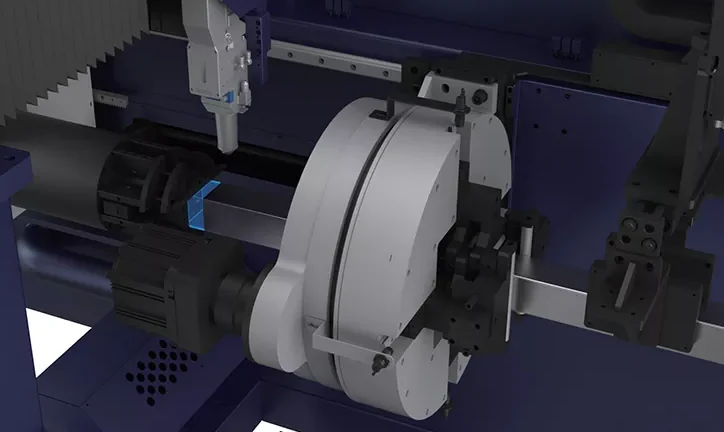

Tube laser cutting head over a square tube held in the rotary chuck

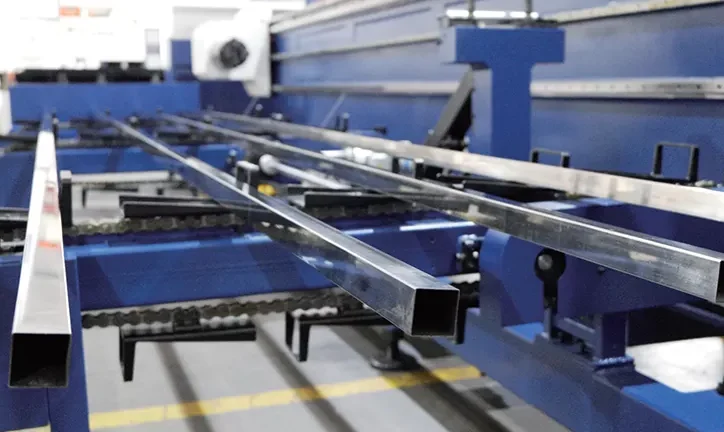

Square steel tubes on the automatic loader of the tube laser

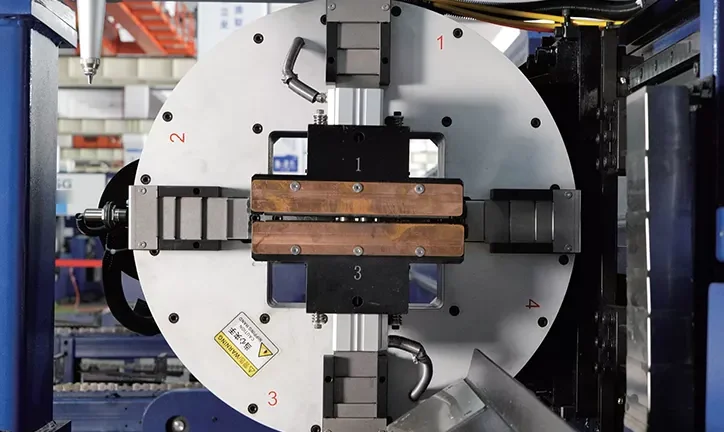

Tube laser chuck with copper anti-burn jaws
How it works
Routing an aluminum panel, routing work by Spark Fabrication in Richmond, BC
In our shop
03 · Flatbed routing

5 × 10 ft CNC router.

Full sheets cut to shape: the gantry follows the toolpath across a 5 × 10 ft bed with an automatic tool changer.

Typical jobs
  • Panels + facades
  • Signs + letters
  • 3D carving
  • Templates
  • Foam inserts
Send a job for this machine What it makes
Bed
5 × 10 ft
Control
Syntec
Tooling
Auto changer
Aluminum
To 1.5″
Large decorative aluminum panel cut on the 5 × 10 ft CNC router
3D carving in progress on the CNC router
Aluminum plate machined on the 5 × 10 ft CNC router
CNC router relief carving in wood
How it works
Laser engraving with smoke rising from the beam
In our shop
04 · CO₂ laser

Trotec Speedy 400.

Cuts and engraves non-metals with sealed, polished edges straight off the bed.

Typical jobs
  • Acrylic signs
  • Leather + fabric
  • Gaskets
  • Prototypes
  • Product marking
Send a job for this machine What it makes
Bed
1000 × 610 mm
Type
CO₂
Jobs
Cut + engrave
Materials
Non-metals

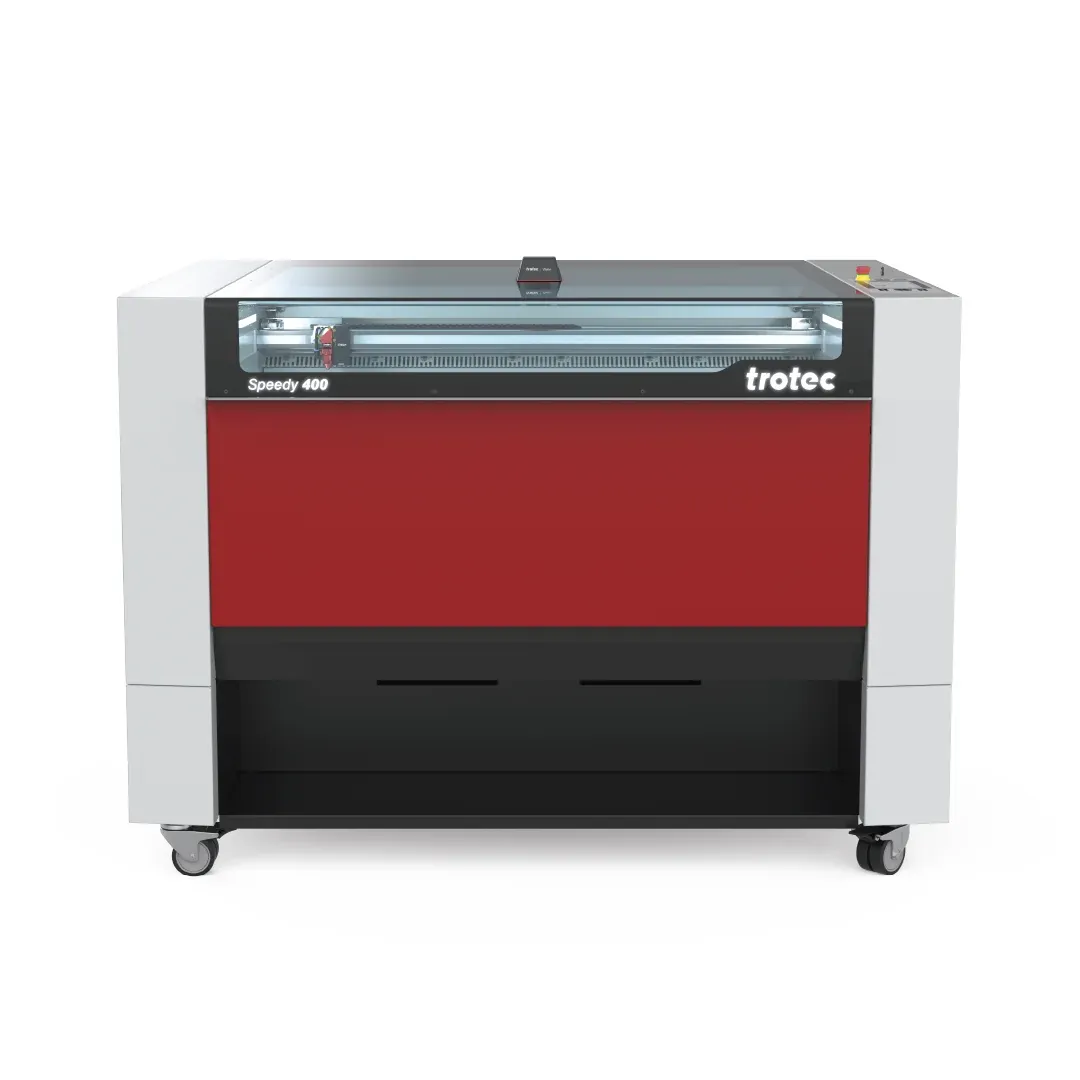

Trotec Speedy 400 CO₂ laser cutter and engraver

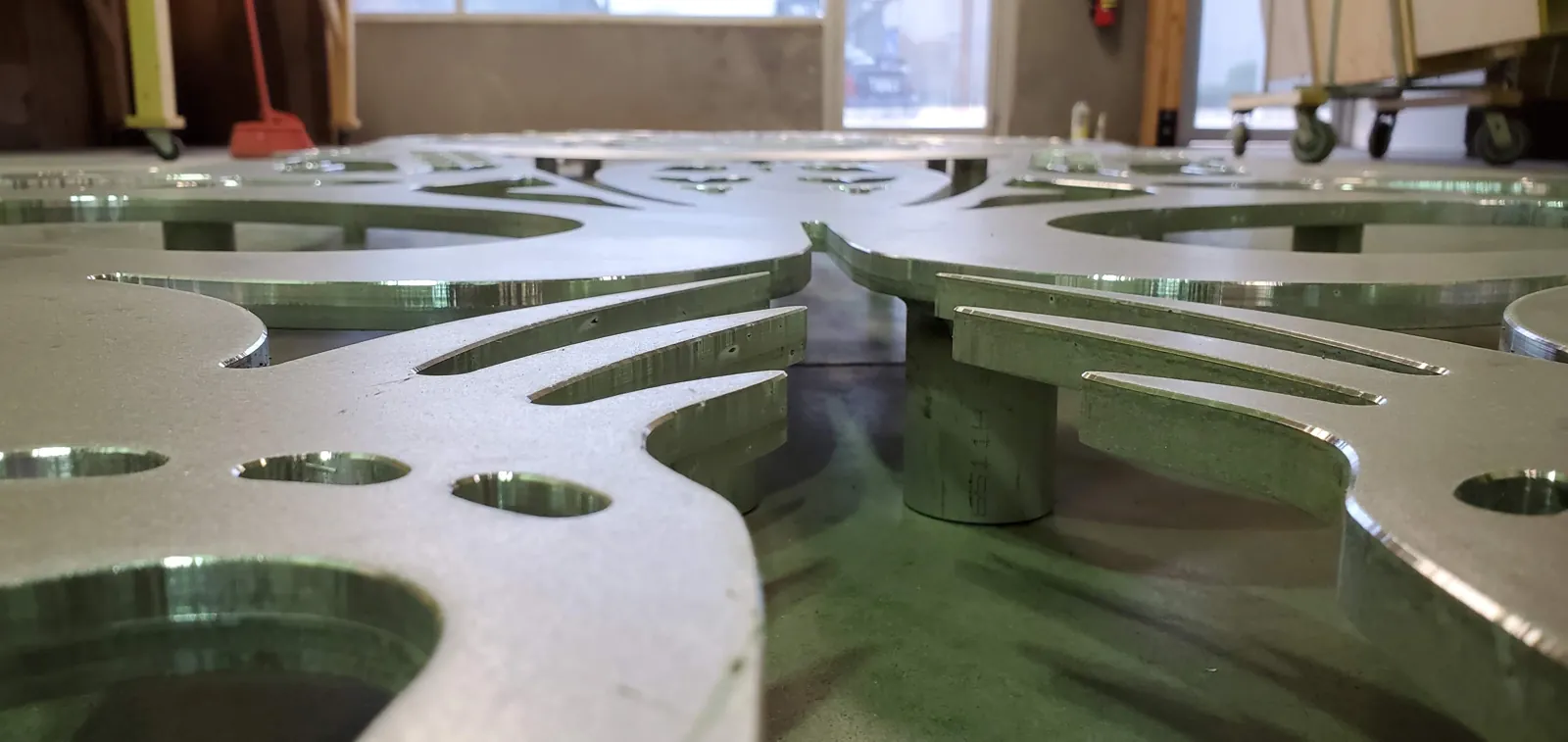

Laser-cut patterned metal parts
Laser engraved lettering on brass
Laser-cut wave screen, laser work by Spark Fabrication in Richmond, BC
How it works

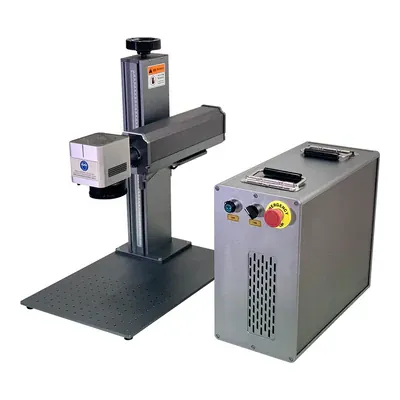

60 W fiber galvo laser marking machine
The machine
05 · Metal marking

60 W fiber galvo laser.

Mirrors steer the beam at high speed to mark serials, logos and codes permanently into metal.

Typical jobs
  • Serial numbers
  • Data-matrix codes
  • Logos
  • Scales + dials
  • Nameplates
Send a job for this machine What it makes
Power
60 W
Type
Fiber galvo
Marks
Deep + annealed
Metals
All common
Fine-line engraved tag, laser work by Spark Fabrication in Richmond, BC
Laser engraved brass plates
Engraved aluminum medallions, laser work by Spark Fabrication in Richmond, BC
Anodized aluminum cards, laser work by Spark Fabrication in Richmond, BC
How it works
TIG welded aluminum box fabrication
In our shop
06 · Fabrication

MIG + TIG welding bay.

Frames, weldments and enclosures in steel, stainless and aluminum, with a 2-ton crane and machining after welding.

Typical jobs
  • Machine frames
  • Enclosures
  • Brackets
  • Stands + carts
  • Repairs
Send a job for this machine What it makes
Processes
MIG · TIG
Metals
Steel · SS · Al
Lifting
2-ton crane + jib
After
Post-weld machining
Fabricated and machined aluminum frame on a workbench
Red powder-coated fabricated steel frame
Red fabricated rack mounted on a perforated panel

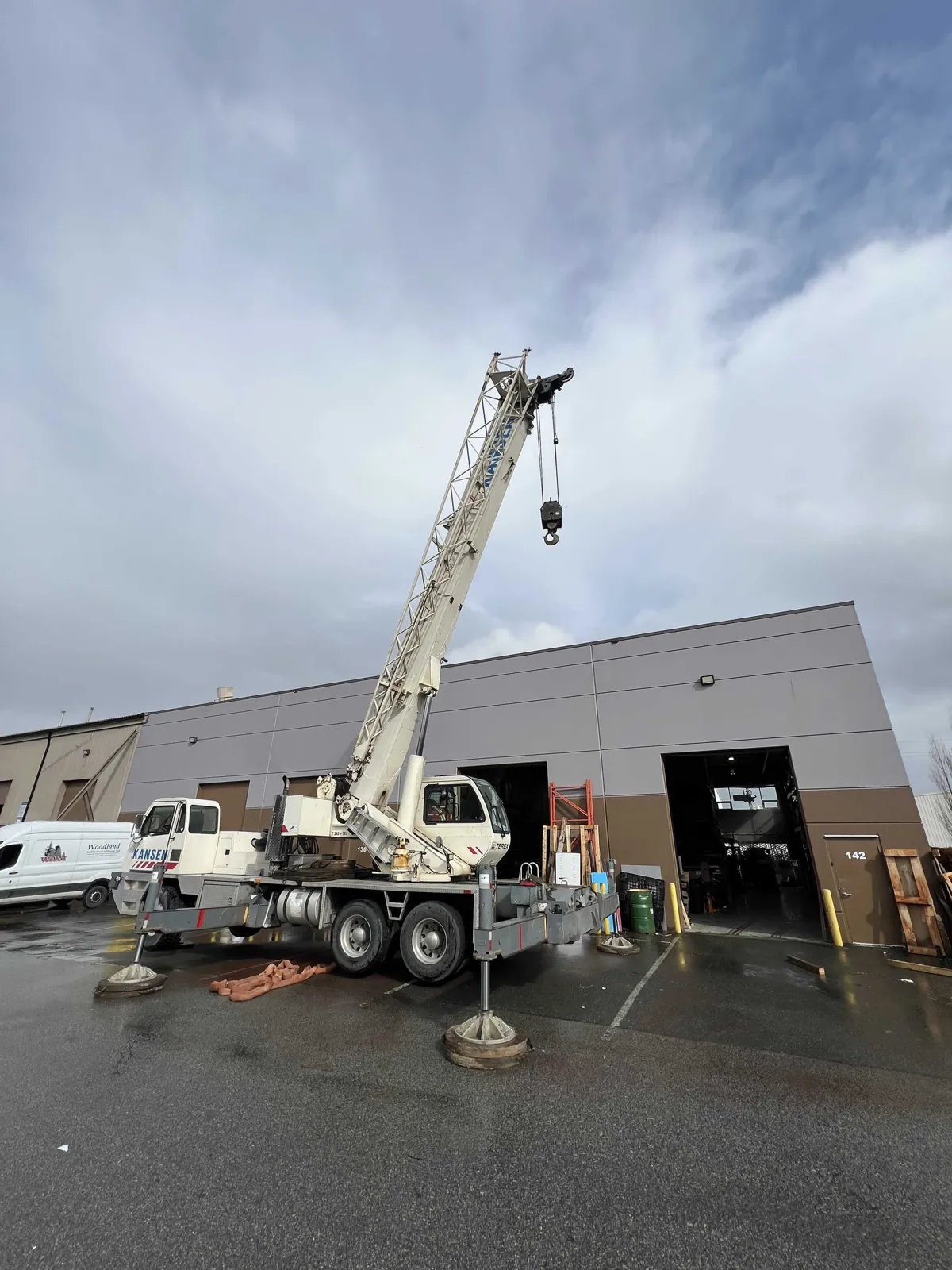

Mobile crane lifting a load at the Spark Fabrication shop in Richmond, BC
Full list

What's on the floor.

DMG MORI DMU 75 monoBLOCKFull 5-axis · 840 × 500 mm · mill-turn
6 kW fiber tube laser9 m load area · tube to 240 mm · Arriving soon
5 × 10 ft CNC routerSyntec control · tool changer · aluminum to 1.5″
Trotec Speedy 400 CO₂ laserCutting + engraving, non-metals
60 W fiber galvo laserPermanent marking on metal
MIG + TIG welding baySteel, stainless, aluminum
Post-weld machiningAlmost anything machined true after welding
Forming + bendingSheet and plate, formed to your drawing
2-ton crane + jib craneHeavy sheet, plate and assemblies
3D printing + prototypingTest fits before metal is cut
Local + offshore

A network for everything else.

For volume and specialty processes we work with vetted local and offshore vendors, and handle quality, import and inspection ourselves. Our own marketplace, U-Fab, connects the rest of Canada's shops.

  • Heavy part machining and sheet forming
  • Casting, plating, anodizing and powder coat
  • Hardware manufacturing, testing and certification
  • Inspection for imported parts and equipment
U-Fab marketplace
CNC machined aluminum manifold blocks with bored ports
In pictures

Inside the shop.

Projects

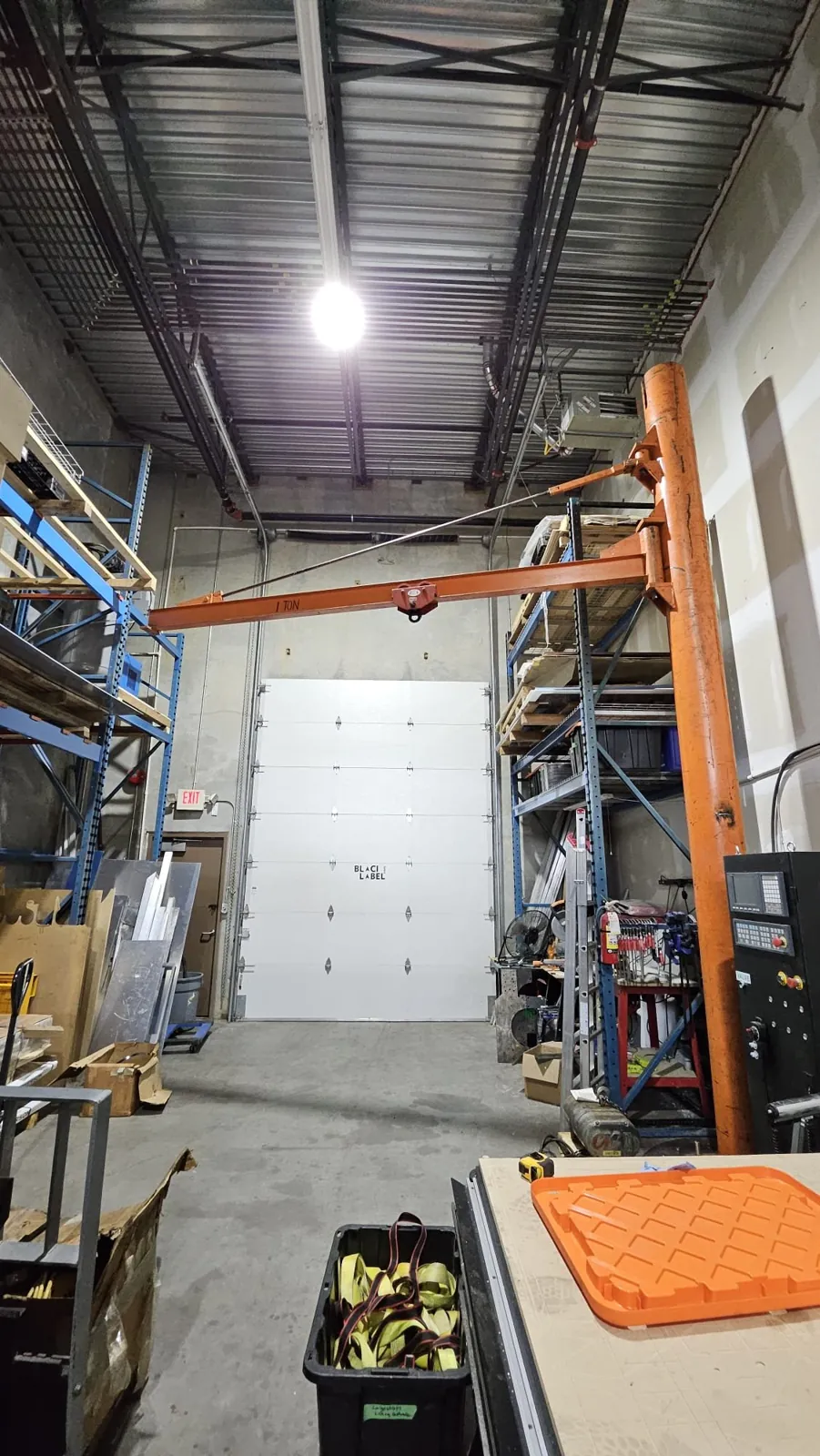

Inside the Spark Fabrication shop: racking and jib crane
DMG MORI DMU 75 monoBLOCK 5-axis CNC machining centre at Spark Fabrication in Richmond, BC

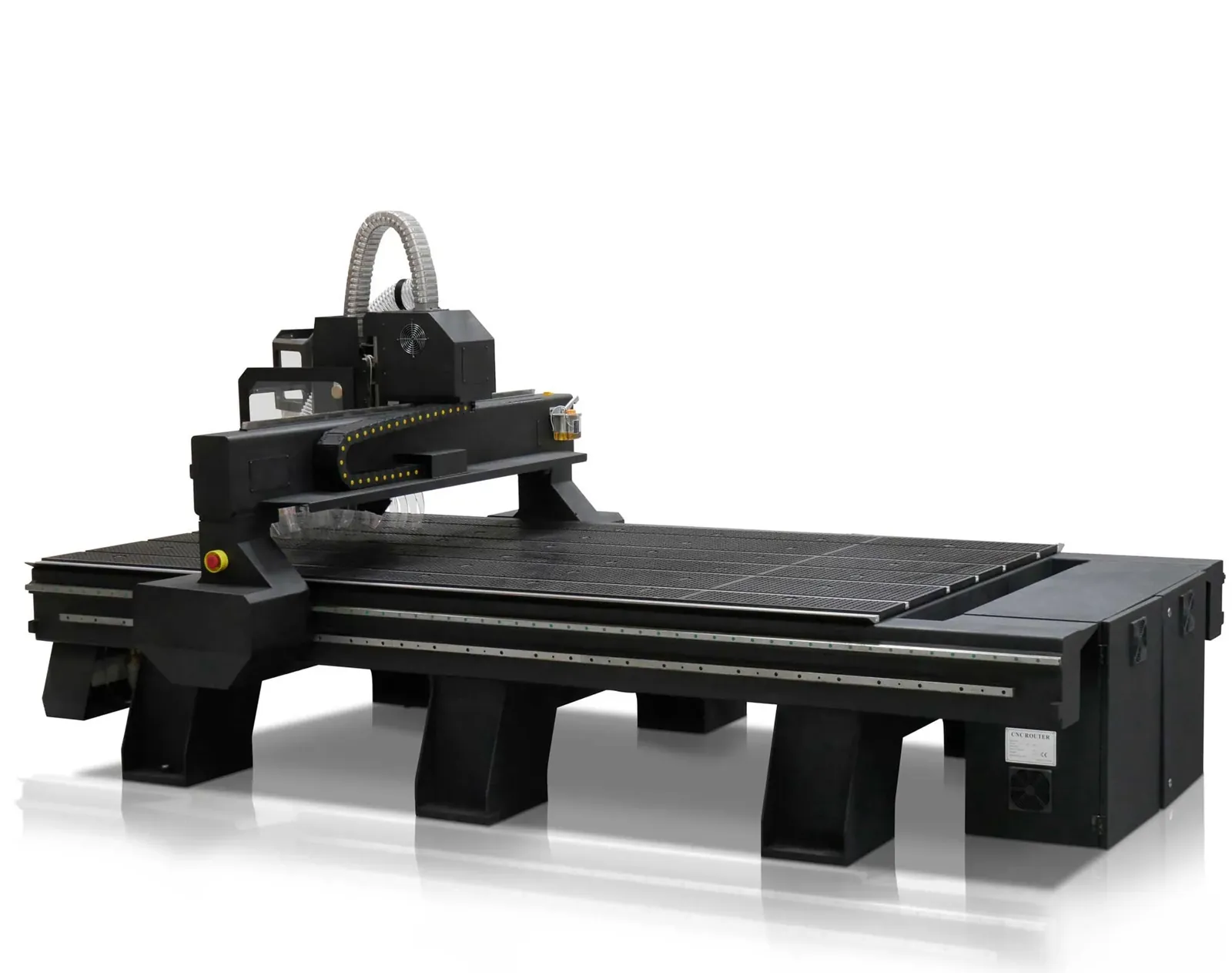

5 × 10 ft CNC router with automatic tool changer
3D carving in progress on the CNC router
Laser engraving with smoke rising from the beam
Mobile crane lifting a load at the Spark Fabrication shop in Richmond, BC
Machined part clamped in a vise on the machining centre
